YA570 - Öhlins STX 46 Street Shock Absorber Yamaha MT-09 (21-23)

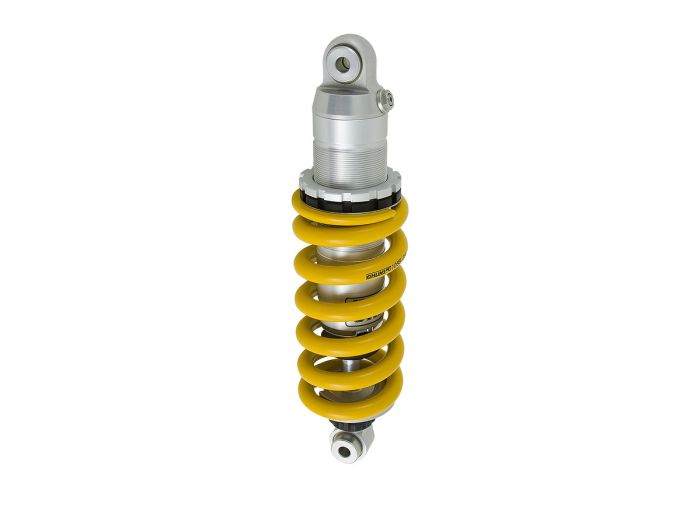

Öhlins STX 46 Street Shock Absorber YA 570
Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
Avalable from approx. October 2021
Part number
YA 570
Type Code
S46DR1
S
Single tube
46
Piston diameter: 46 mm
D
Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
Technical data
| Length: | 326 mm |
|---|---|
| Stroke: | 65 mm |
| Rate N/mm: | 90 N/mm |
| Mounted spring: | 01092-29 |
| Packaging unit: | pieces |
Fits for vehicles
Yamaha MT-09 (2021 – 2023)
| Bike - Brand | Yamaha |
|---|---|
| Bike - Type | Road |
| Bike - Model | MT-09 |
| Bike - Year | 2021, 2022, 2023 |
