YA569 - Öhlins STX 46 Street Shock Absorber Yamaha MT-09 (21-22)

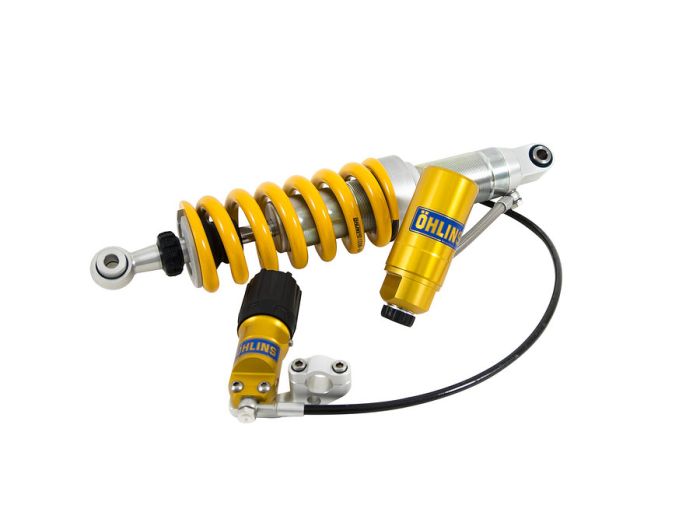

Öhlins STX 46 Street Shock Absorber YA 569
Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
Available from approx. August 2021
Part number
YA 569
Type Code
S46HR1C1S
S
Single tube
46
Piston diameter: 46 mm
H
Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S
Hose mounted hydraulic spring preload adjuster.
Technical data
| Length: | 326 mm |
|---|---|
| Stroke: | 65 mm |
| Rate N/mm: | 90 N/mm |
| Mounted spring: | 01092-29 |
| Packaging unit: | pieces |
Fits for vehicles
Yamaha MT-09 (2021 – 2022)
| Bike - Brand | Yamaha |
|---|---|
| Bike - Type | Road |
| Bike - Model | MT-09 |
| Bike - Year | 2021, 2022 |
