YA583 - Öhlins STX 46 Street Shock Absorber Yamaha Tracer 9 (21-23)

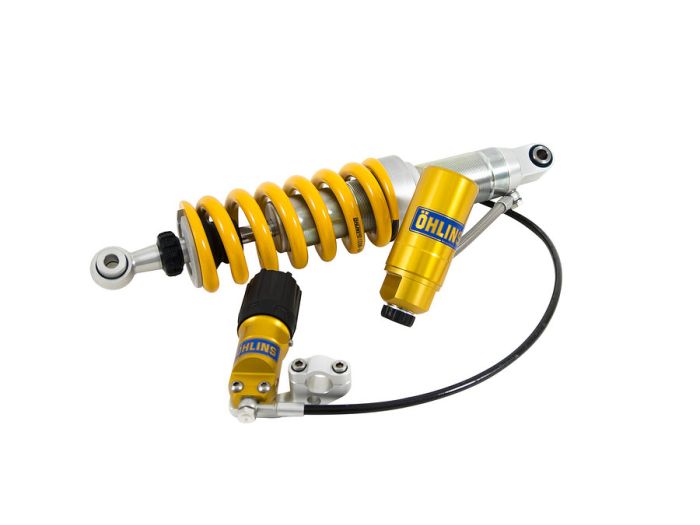

Öhlins STX 46 Street Shock Absorber YA 583
Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
Part number
YA 583
Type Code
S46HR1C1S
S
Single tube
46
Piston diameter: 46 mm
D
Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
H
Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
S
Hose mounted hydraulic spring preload adjuster.
Technical data
| Length: | 327 mm |
|---|---|
| Stroke: | 71,5 mm |
| Rate N/mm: | 115N/mm N/mm |
| Position: | rear |
| Mounted spring: | 01096-41 |
| Recommended oil: | 01309-XX |
| Packaging unit: | pieces |
Fits for vehicles
Yamaha Tracer 9 (2021 – 2023)
| Bike - Brand | Yamaha |
|---|---|
| Bike - Type | Off-Road, Road |
| Bike - Model | TRACER 900 |
| Bike - Year | 2021, 2022, 2023 |
