YA343 - Shock Absorber Ohlins STX46 Supersport S46PR1C2LS Yamaha YZF R1 (04-06)
Special Price
$1,447.20
Regular Price
$1,556.13
SKU
YA343
In stock
shipping may take more than 30 working days
Estimate Shipping Cost
Shock Absorber Ohlins STX 46 Supersport S46PR1C2LS 300 +6/-0 Yamaha YZF R1 (04-06)
Original Product
Images are to be considered for demonstration purposes only and may not represent the actual product.

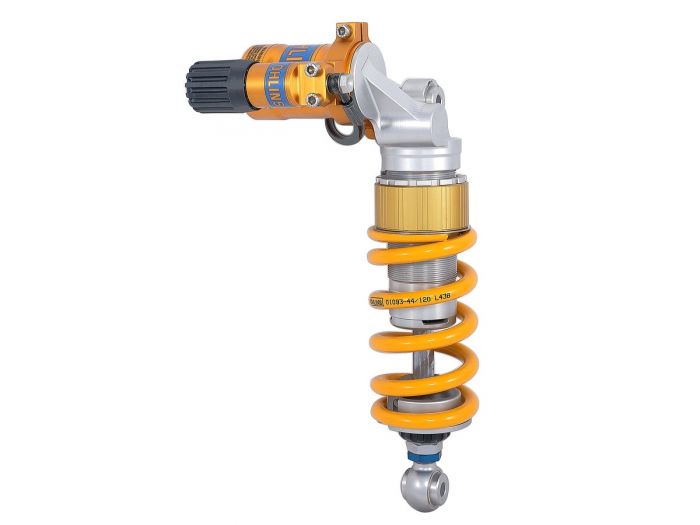

STX 46 Supersport Shock Absorber YA 343
Fits for vehiclesYamaha YZF-R1 (2004 – 2006)
Part number
YA 343
Type Code
S46PR1C2LS
S
Single tube
46
Piston diameter: 46 mm
P
Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C2
Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.
L
Adjustable length.
S
Hose mounted hydraulic spring preload adjuster.
Technical data
| Length: | 300 +6/-0 mm |
|---|---|
| Stroke: | 64,5 mm |
| Rate N/mm: | 95 N/mm |
| Mounted spring: | 01093-31 |
| Bike - Brand | Yamaha |
|---|---|
| Bike - Type | Road |
| Bike - Model | YZF-R1 |
| Bike - Year | 2004, 2005, 2006 |
Manufacturer / Responsible Person for the EU
Manufacturer
Company Name:
Öhlins Racing AB
Address:
Box 722
194 27 Upplands Väsby
SE
Email Address:
info@ohlins.com
Responsible Person for the EU
Company Name:
Andreani Group International SRL
Address:
Strada della Romagna 361
61121 Pesaro
IT
Email Address:
info@andreanigroup.com
