SU509 - Shock Absorber Ohlins STX46 Street S46DR1B 328mm Suzuki GSX-S1000
Special Price
$947.03
Regular Price
$1,018.31
SKU
SU509
In stock
shipping in 5/15 working days
Estimate Shipping Cost

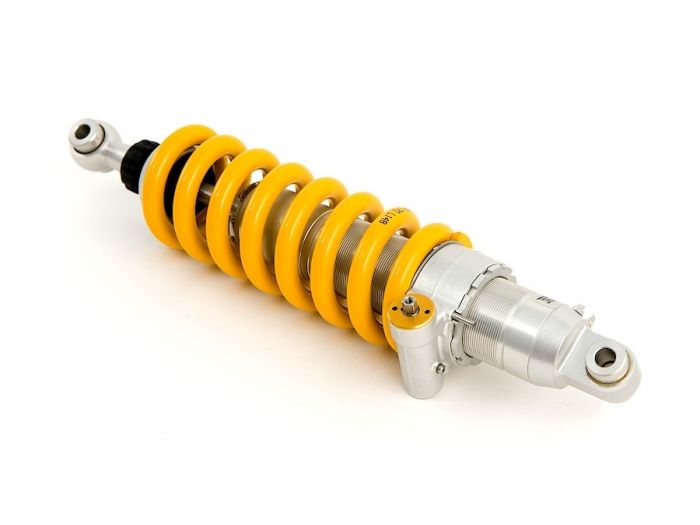

Shock Absorber Ohlins STX46 Street S46DR1B 328mm Suzuki GSX-S1000 (15-18)
Original Product
Images are to be considered for demonstration purposes only and may not represent the actual product.
STX 46 Street Shock Absorber SU 509
Our well proven STX 46 shock absorber is the perfect upgrade for sportive street bikes. This mono tube tube high pressure gas type shock absorber comers with an internal or external gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features hydraulic preload adjustment as well as adjustable compression and rebound adjustment.
Fits for vehicles
Suzuki GSX-S1000 (2015 – 2019)
Suzuki GSX-S1000S Katana (2019)
Part number
SU 509
Type Code
S46DR1B
S
Single tube
46
Piston diameter: 46 mm
D
Monotube high pressure gas type of shock absorber with internal reservoir in the main body.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
B
Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.
Technical data
| Length: | 328 mm |
|---|---|
| Stroke: | 63 mm |
| Rate N/mm: | 105 N/mm |
| Mounted spring: | 01092-36 |
| Bike - Brand | Suzuki |
|---|---|
| Bike - Type | Road |
| Bike - Model | GSX-S 1000 |
| Bike - Year | 2015, 2016, 2017, 2018, 2019 |
