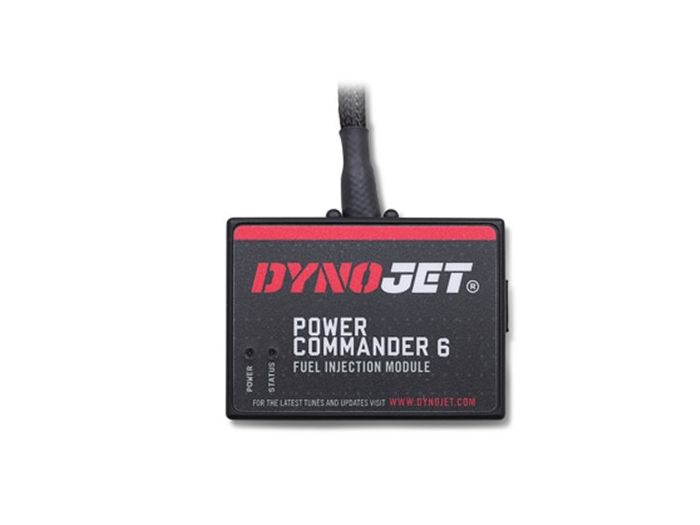

PC6-22104 - Dynojet Power Commander 6 Fuel Injection Module for Yamaha R3 (25-26)

Dynojet Power Commander 6 Fuel Injection Module for Yamaha R3 (2025-2026)

Take your Yamaha R3 performance to the next level with the new Dynojet Power Commander 6 (PC6-22104) injection module. Specifically designed to optimize the power delivery of this lightweight supersport, this fuel tuner is the ultimate solution to get the most out of your twin-cylinder engine, especially if you have installed a sport exhaust or a high-performance air filter.

The PC6 connects directly to your bike's original wiring harness without any invasive modifications, intercepting and adjusting fuel injection signals in real time to ensure a perfect air/fuel ratio at any RPM.

Why install the Power Commander 6 on your Yamaha R3?

• Goodbye to flat spots: The engine often suffers from lean fueling at low and mid-range RPM due to emission regulations. The PC6 corrects the fueling curve, making the ride smooth, linear, and much more responsive to throttle input.
• Maximum performance from aftermarket exhausts: If you have replaced the silencer or full system, the stock ECU cannot fully compensate for the new exhaust flow. The PC6 realigns injection values to gain horsepower and torque where you need it most.
• Dual map management: You can load two different maps into the module (for example, an Eco map and a Racing map) and switch between them in real time by installing a simple optional external switch.

Main Technical Features

• Plug and Play Installation: No wires to cut. The included connectors match your Yamaha's stock wiring perfectly.
• Precise Adjustments: Allows you to modify injection timing based on engine RPM and throttle position (TPS).
• Power Core Management Software: Free to download, it allows you to import pre-configured maps, create your own, or fine-tune settings on a dyno.
• Expandable: Ready for additional Dynojet modules such as the Quickshifter or the AutoTune module for continuous self-mapping.

Package Content

• Dynojet Power Commander 6 Module (Part Number PC6-22104)
• Specific wiring harness for Yamaha R3 (2025-2026)
• USB cable for PC connection
• Step-by-step installation guide
• Mounting hardware

Installation Note: The module comes with a base or zero map. To achieve maximum performance, we recommend downloading a specific map from the Dynojet database or having the bike tuned on a dyno by an authorized center.
