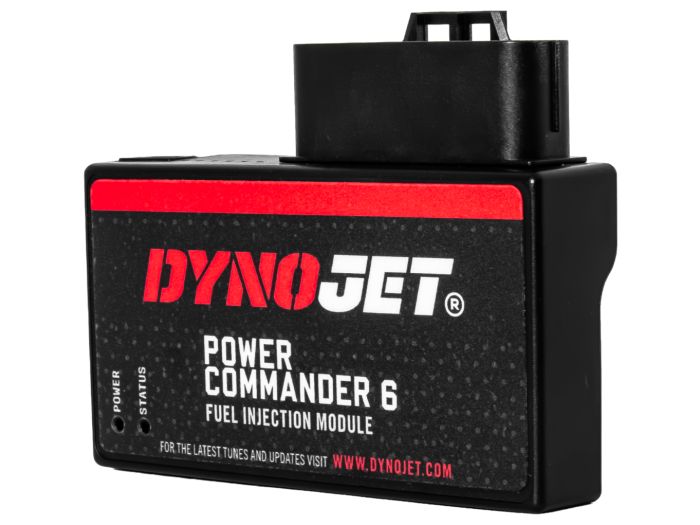

PC6-22102 - Dynojet Power Commander 6 Fuel Injection Module for Yamaha YZ450F (23-24)

Dynojet Power Commander 6 Fuel Injection Module for Yamaha YZ450F (2020-2022)

Take your Yamaha YZ450F performance to the next level with the new Dynojet Power Commander 6 (PC6-22102) injection module. Specifically developed for motocross demands, this fuel tuner is the ultimate solution to optimize power delivery, especially if you have installed a racing exhaust or a high-flow air filter.

The PC6 connects directly to your bike's original wiring harness without any invasive modifications, intercepting and adjusting fuel injection signals in real time to ensure a perfect air/fuel ratio at any RPM and on any track condition.

Why install the Power Commander 6 on your Yamaha YZ450F?

• Instant throttle response: In motocross, responsiveness is everything. The PC6 eliminates flat spots and hesitation, ensuring a smooth, linear drive and optimal traction out of corners and over jumps.
• Maximum performance from aftermarket exhausts: If you have replaced the stock exhaust with a full racing system, the factory ECU cannot fully compensate for the new flow. The PC6 realigns injection values to gain horsepower and torque where you need it most.
• Dual map management: You can load two different maps into the module (for example, a hard-pack map and a mud/sand map) and switch between them in real time by installing a simple optional external switch.

Main Technical Features

• Plug and Play Installation: No wires to cut. The included connectors match your Yamaha mx bike's stock wiring perfectly.
• Precise Adjustments: Allows you to modify injection timing based on engine RPM and throttle position (TPS).
• Power Core Management Software: Free to download, it allows you to import pre-configured maps, create your own, or fine-tune settings on a dyno.
• Expandable: Ready for additional Dynojet modules such as the Quickshifter or the AutoTune module for continuous self-mapping.

Package Content

• Dynojet Power Commander 6 Module (Part Number PC6-22102)
• Specific wiring harness for Yamaha YZ450F (2020-2022)
• USB cable for PC connection
• Step-by-step installation guide
• Mounting hardware

Installation Note: The module comes with a base or zero map. To achieve maximum performance, we recommend downloading a specific map from the Dynojet database or having the bike tuned on a dyno by an authorized center.
