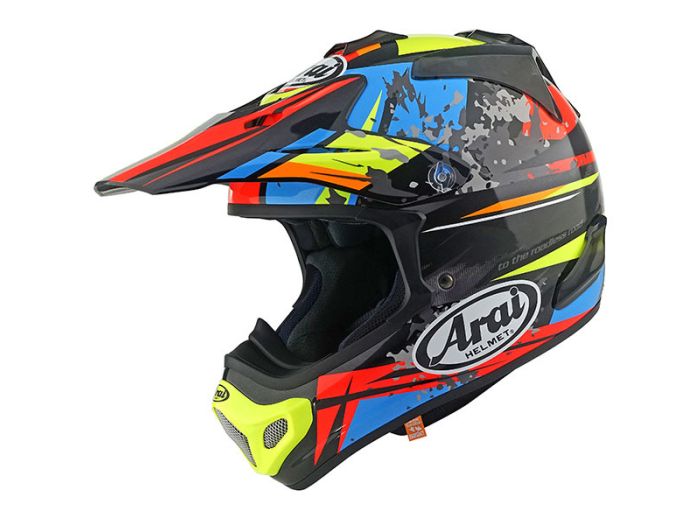

Off-Road Helmet Arai MX-V EVO Track

Size	XXXS	XXS	XS	S	M	L	XL	XXL	XXXL
Circumference	49/50	51/52	53/54	55/56	57/58	59/60	61/62	63/64	65/66

MX-V EVO

The MX-V has gained EVO status and is the new benchmark for MX, Enduro, and off-road use. The round and smooth shape of an Arai helmet works to improve protection. For this reason, no exaggerated edges or protrusions will be part of an Arai helmet shell.

Arai’s Priority for Protection: the core design philosophy of producing rounder, smoother and stronger outer shells to improve ‘Glancing Off’ performance, is key in this attainment, as is the rigorous in-house criteria that all Arai helmets must satisfy.

MX-V EVO Features

General

Outer shell: SCLC (Super Complex Laminate Construction)

The latest aerospace fibres, with 30% more strength in extension & bending resistance than standard fiberglass comprises the majority of the SCLC shell. While considerably more expensive than most fiberglass (and in fact more than many Carbon Fibre materials), this “Super Fibre” provides incredible flexibility and strength, which maximizes shell integrity. A specially designed “mechanically expanded fibre mat,” sandwiched between the inner and outer layers of Arai´s proprietary Super Fibre Laminates, is used to reinforce and bond these two Super Fibre layers without adding significant weight to the helmet.

Innovative peak

The Arai peak scavenges and forces air into the forehead vent ports for cooling while at the same time using multiple relief-ports to reduce “lifting” at higher speeds.

Ventilation

MX-V Ventilation

Easy to clean diffusers create a strong venture vacuum at the rear. Centre top vent for increased airflow. Under-peak air intake collects and directs cool air into the helmet. Inner chin vent shutter prevents debris coming into the helmet in dusty riding conditions. Goggle ventilation and lower side vents.

Front ventilation

Center top vent - intake

The same proven Top Vent as the RX-7V provides 11% more airflow than the previous RX-7 Vent. The bigger switch makes opening and closing easier. The Top Vent has three positions; closed, half open and fully open to adjust the airflow and prevent water intrusion when fully closed.

Inner chin (bar) vent shutter

Open and close the chin bar vents from the inside to prevent debris coming into the helmet in dusty riding conditions.

Rear ventilation

One-piece rear exhaust with spoiler function

The one-piece rear exhaust/spoiler, operated by a 3-way switch, is inspired by the DF-X2 of the RX-7V Racing, but redesigned for touring use – however, it was tested up to 300km/h at Suzuka. It sits a little more forward on the shell and is fed by 3 ports in the shell. As part of the Quantic’s comprehensive ventilation system it efficiently draws air but also smooths airflow over (and from the side) of the helmet, improving stability and reducing buffeting, especially while overtaking at highway speeds. The result is much less rider fatigue. Manufactured as thin and light as possible it’s designed to crush or break away upon impact, therefore having no impact on protective performance.

Side exhausts

Produce low pressure behind the rear vent for better hot air extraction. Integrated in the shell for better aerodynamics, reduce wind noise and prevent buffeting at speed. Inside, a small foam dam helps to absorb and diminish excessive noise, without reducing ventilation performance.

Aerodynamics

Visor

Interior

Dry-Cool® Liner

Arai´s Dry-Cool® material transfers heat and moisture away from the rider quickly and efficiently.

Replaceable Cheek pads/Ear cups

Cheek pads/ear cups may be easily removed. All parts (replaceable or not) can be cleaned with lukewarm water and mild soap. Rinse well after cleaning, blot dry with a towel and let air dry completely before reassembly. Never machine wash or use heat to dry. Interior parts in different size thickness are available for a custom fit for every rider.

• Remove by taking the frontside out first
• Place back by inserting the backside first

Replaceable Interior

The complete interior may be easily removed. All parts (replaceable or not) can be cleaned with lukewarm water and mild soap. Rinse well after cleaning and never dry in direct sunlight or near a heat source. Interior parts in different size thickness are available for a custom fit for every rider.

Replaceable Chinstrap covers

All parts (replaceable or not) can be cleaned with lukewarm water and mild soap. Rinse well after cleaning and never dry in direct sunlight or near a heat source. Interior parts in different size thickness are available for a custom fit for every rider.

Replaceable Neckroll

All parts (replaceable or not) can be cleaned with lukewarm water and mild soap. Rinse well after cleaning and never dry in direct sunlight or near a heat source. Interior parts in different size thickness are available for a custom fit for every rider.

Facial Contour System (FCS)

To offer an even better snug fit and enhancing the comfort to the lower jaw, the Facial Contour System (FCS) works with a foam spring support in the cheek pad that compresses and rebounds, providing the necessary support without excessive pressure.

5mm ’’Peel Away’’ Ear cups/Cheek pads

Giving even more ability to craft the perfect fit and comfort, the cheek pads feature a 5 mm peel away layer for added room if needed.

Comfort

Emergency Release System (ERS)

Allows easier access to an injured rider. By pulling the orange tabs integrated in the pads, the cheek pads slide out. Making helmet removal easier for trained medical personnel and rescuers. Minimising the risk of additional injury.

Breath guard

Works in conjunction with the dual-pivot® chin vent to better direct fresh air to the inside surface of the shield while at the same time directing hot breath down and away from the inside surface of the shield.

Arai Features

5-year limited warranty

All Arai helmets are warranted against defects in materials and workmanship, and are serviceable only for the properly fitted first user for 5 years from date of first use, but no more than 7 years from date of manufacture.

All-day comfort

All-day comfort with the Arai interior fit and shape together with the finest liner materials and the extensive ventilation system. And thanks to the perfect balance and weight distribution of the helmet, you hardly notice you are wearing an Arai.

Different outer shells

Unlike many other manufacturers Arai provides one size outer shell for each two-helmet sizes for most models. Together with different shaped outer shells for different models it is almost impossible not to find the fit you are looking for.

Arai In-house Test

Arai helmets are designed to meet the stringent Arai In-house criteria, in addition to the mandatory ECE standard.

Double-D ring device

The flat and D-shaped rings fit smooth against the chin. No moving parts, no corrosion problems and just pulling the tab is enough to loosen the fastener.

Five times inspected

Each Arai helmet goes through five separate quality-control depart­ments: after the shell is made, after painting and graphic completion, after assembly and two in-process inspections.

Glancing Off

To minimize impact energy getting into the helmet, it’s crucial that a helmet can slide over a surface. Arai believes that a Strong, Round & Smooth shell helps to increase a helmets ability to protect the rider during an impact. Shells with sharp edges or vent ducts that don’t break off can reduce the helmet’s ability to slide, sending energy into the helmet, or even enhance rotational energy.

Handmade

It can take up to five years for our experts to earn the right to create an Arai shell. Each shell can take up to 27 steps and to build one Arai helmet will take about 18 man-hours.

Organic shape

The organic shape of an Arai outer shell offers a more natural appearance, seals better and conforms more to the head’s natural shape for improved comfort, fit and to help minimize wind turbulence.

Penetration tested

All Arai helmets are penetration tested, although not required by European helmet standards. The Arai penetration test is performed with a 3kg test cone that strikes from a height of 3m on the helmet.

Smooth shape, better protection

The smooth outer shell of Arai helmets is designed to glide without unnecessary resistance. You don’t want to decelerate your helmet more than necessary. That’s why all Arai vents and ducts are designed to break off during an impact.

Strong outer shell, soft inner shell

Arai uses a very strong outer shell to spread impact forces and a soft inner shell to absorb remaining energy. The multiple-density EPS inner shell is made using a unique technology of combining three to five densities in various areas as a single component.

Washable interior

The premium quality interior of any Arai helmet can be easily cleaned, in place, with mild soap and lukewarm water.

Approval

ECE R22-06

ECE R22-06 requires a much more stringent testing process than the previous ECE R22-05 and includes an oblique test to measure rotation.
