KA203 - Shock Absorber Ohlins STX 46 Supersport S46HR1C1LS Kawasaki GPZ 900 R
Special Price
€1,120.65
Regular Price
€1,205.00
SKU
KA203
In stock
shipping in 5/15 working days
Estimate Shipping Cost

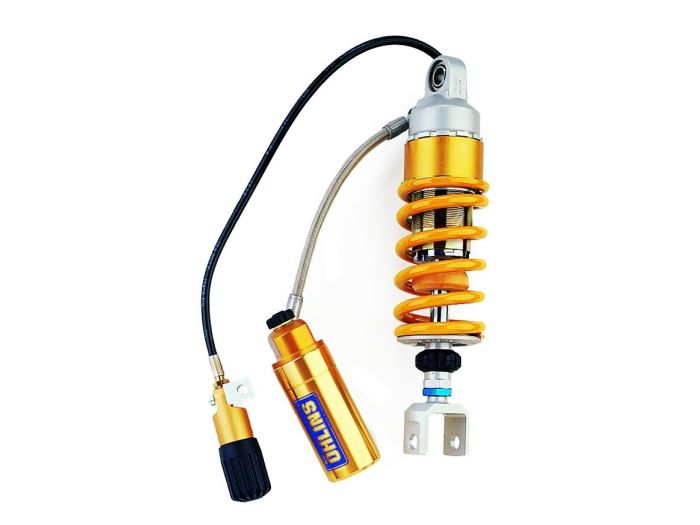

Shock Absorber Ohlins STX 46 Supersport S46HR1C1LS 330 +10/-2 Kawasaki GPZ 900 Racing (99-00)
Original Product
Images are to be considered for demonstration purposes only and may not represent the actual product.
STX 46 Supersport Shock Absorber KA 203
Fits for vehiclesKawasaki GPZ900 Racing (1999 – 2000)
Part number
KA 203
Type Code
S46HR1C1LS
S
Single tube
46
Piston diameter: 46 mm
H
Monotube high pressure gas type of shock absorber with hose mounted external reservoir.
R1
Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.
C1
Adjustable compression damping. Adjuster wheel or slot on the reservoir.
L
Adjustable length.
S
Hose mounted hydraulic spring preload adjuster.
Technical data
| Length: | 330 +10/-2 mm |
|---|---|
| Stroke: | 67,5 mm |
| Rate N/mm: | 90 N/mm |
| Position: | rear |
| Mounted spring: | 01091-29 |
| Packaging unit: | pieces |
Notes
17 inch rear wheel
| Bike - Brand | Kawasaki |
|---|---|
| Bike - Type | Road |
| Bike - Model | GPZ 900 R |
| Bike - Year | 1999, 2000 |
