HO913 - Shock Absorber Ohlins STX 46 S46HR1C1 200 N/mm Honda CB/R 650 R (19-20)
Special Price
$919.14
Regular Price
$1,074.27
SKU
HO913
In stock
shipping in 5/15 working days
Estimate Shipping Cost
HO913 - Shock Absorber Ohlins STX 46 Street S46HR1C1 200 N/mm Honda CB650R (2019 – 2020) | Honda CBR650R (2019 – 2020)
Original Product
Images are to be considered for demonstration purposes only and may not represent the actual product.

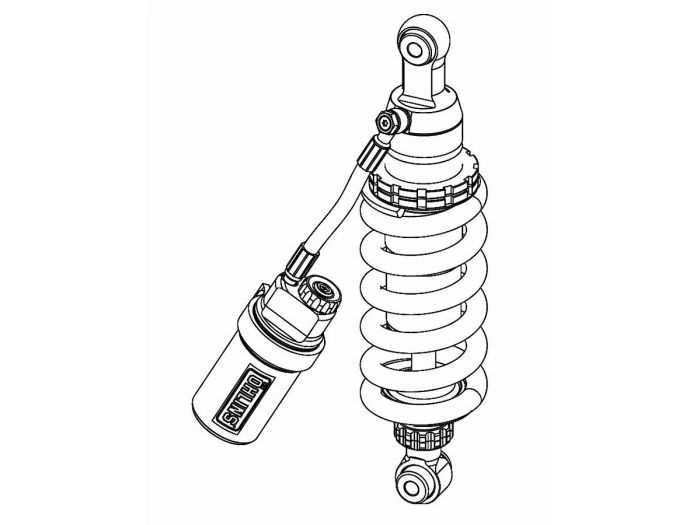

STX 46 Street Shock Absorber HO 913
Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.
Part number
HO 913
Type Code
S46HR1C1
 | SSingle tube |
 | 46Piston diameter: 46 mm |
 | HMonotube high pressure gas type of shock absorber with hose mounted external reservoir. |
 | R1Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye. |
 | C1Adjustable compression damping. Adjuster wheel or slot on the reservoir. |
Technical data
| Length: | 332 mm |
|---|---|
| Stroke: | 52 mm |
| Rate N/mm: | 200 N/mm |
| Mounted spring: | 01092-84 |
Fits for vehicles
Honda CB650R (2019 – 2020)
Honda CBR650R (2019 – 2020)
| Bike - Brand | Honda |
|---|---|
| Bike - Type | Road |
| Bike - Model | CB 650, CBR 650 R |
| Bike - Year | 2019, 2020 |
