FKS504 - Cartridge Kit Ohlins NIX 30 Street Yamaha MT-09 / Tracer 900 / XSR900

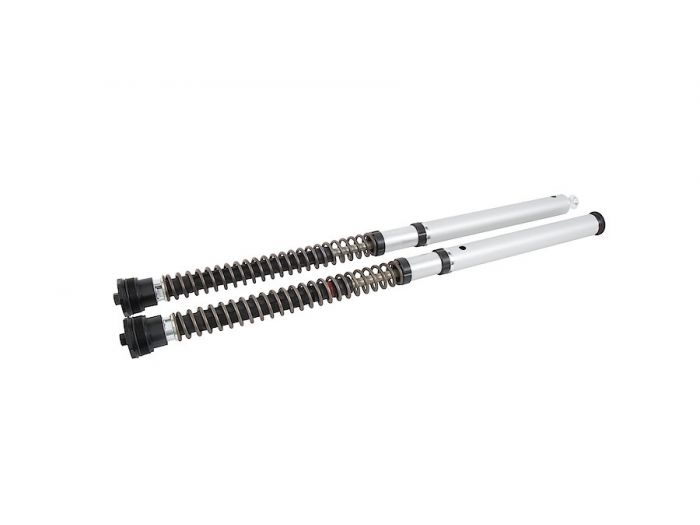

NIX 30 Street Cartridge Kit FKS 504
The NIX 30 Street cartridge kit features new designed black top caps to give the bike a more subtle look. The “NIX” technology is developed from high level racing such as WSBK to deliver the utmost performance on road as well as on track. Changing to the NIX 30 street cartridge kit is easy. It fits bolt on in the standard fork legs and gives you adjustable compression and rebound damping separated in each leg, as well as preload adjustment, all accessible from the black top caps.
The NIX 30 Street cartridge kits are delivered without springs. The springs need to be ordered separately to suite customer’s choice of spring rate.
Part number
FKS 504
Technical data
| Length: | 804 mm |
|---|---|
| Stroke: | 137 mm |
| Position: | front |
| Spring series: | 08423-Serie |
| Recommended oil: | 01309 |
| Oil level mm: | 160 mm |
| Packaging unit: | pair |
Notes
Springs have to be ordered separately.
It is recommended to contact an ÖHLINS Service Center for installation.
Fits for vehicles
Yamaha MT-09 (2014 – 2020)
Yamaha MT-09 SP (2018 – 2020)
Yamaha Tracer 900 (2015 – 2020)
Yamaha Tracer 900GT (2018 – 2020)
Yamaha XSR900 (2016 – 2020)
| Bike - Brand | Yamaha |
|---|---|
| Bike - Type | Off-Road, Road |
| Bike - Model | MT-09, TRACER 900, XSR 900 |
| Bike - Year | 2014, 2015, 2016, 2017, 2018, 2019, 2020 |
