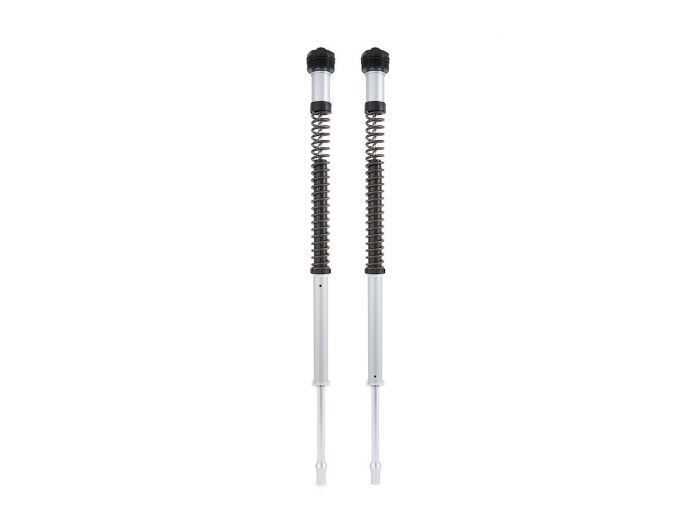

FKS212 - Cartridge Kit Ohlins NIX 22 Harley-Davidson Dyna (06-17)

NIX 22 Cartridge Kit FKS 212

Öhlins cartridge kits are based on our experience learned through decades of testing and racing in high tier championships. Our cartridge kits deliver loads of performance together with stable damping characteristics while ensuring great comfort and contributing to rider confidence. With the NIX22 cartridge kits this now available for motorcycles with conventional front forks.

Each Öhlins cartridge kit has been tested extensively and tailor made to suit the individual requirements and characteristics for each individual bike. In combination with the well proven “NIX” design which features compression damping in the left leg and rebound damping in the right leg, it allows for a more precise function and stability. All adjustments including spring preload are made at the top cap.

The cartridge system fits into the original front fork, springs have to be ordered individually - please follow our recommendations regarding spring rates in relation to rider's weight.

Part number

Type Code

Technical data

Notes

Will not fit Wide Glide FXDWG (all MY), Fat Bob FXDF (all MY) & Low Rider S 2016-17!

Springs are not included in the kit and have to be ordered individually (spring set 08790-10 recommended, heavy-duty-springs 08790-11 for riders over 100kg, even harder springs possible >120kg & > 140kg!).
It is recommended to contact an ÖHLINS Service Center for installation.

Fits for vehicles

• Harley-Davidson Dyna Low Rider FXDL (FD2) (2007 – 2017)

  • ABE (Germany)
  • Will not fit Low Rider S (FXDLS) 2016-17

• Harley-Davidson Dyna Low Rider FXDLI (FD2) (2006 – 2007)

• Harley-Davidson Dyna Street Bob FXDB (FD2) (2006 – 2017)

• Harley-Davidson Dyna Super Glide Custom FXDC (FD2) (2007 – 2017)

• Harley-Davidson Dyna Switchback FLD (2012 – 2016)
