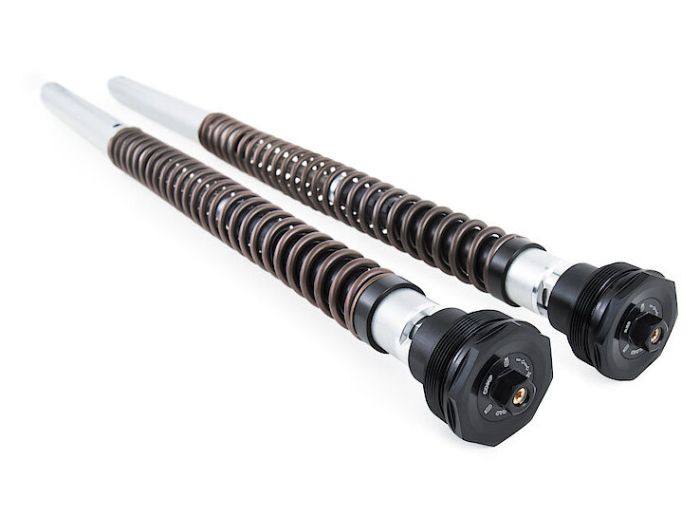

FKA225 - Öhlins FKA Cartridge Kit Adventure Husqvarna Norden 901 (22-25)

Öhlins FKA Cartridge Kit Adventure FKA 225

Based on the well proven NIX technology from our Road & Track product line, Öhlins developed the FKA cartridge kits for Adventure Bikes improving these in terms of comfort and overall performance.

Thanks to the FKA cartridge kits from Öhlins the bike now has a fully adjustable front end. Rebound damping is on one leg and compression in the other leg, with adjustable spring preload in both legs. Different springs are available for riders individual demands as well as an effective hydraulic stop inside the kit to prevent bottoming.

Front fork springs and oil need to be ordered separately. Spring rate recommendations can be found in the mounting instruction.

The Öhlins cartridge system fits into the original front fork. Please follow our recommendations regarding spring rates and oil in relation to rider's weight and preference listed in the specific cartridge kit's mounting instruction. At FKA 2XX Kits, springs are included.

Installation Tools

For a correct installation of the cartridge kit into the standard front fork the following tools are required. These tools are not included and need to be purchased in addition at the Öhlins online shop.

• Tool, pull up top-out spring M12, part no. 01765-03
• Tool, cylindertube cap, part no. 01797-07

Note

Öhlins does not offer technical support to end users. Therefore it is strongly recommended to have the cartridge kit installed by a professional motorcycle or suspension workshop. Authorized Öhlins dealers and Service Centers can be found HERE.

Fits the following vehicles

• Husqvarna Norden 901, 2022 – 2025

Part number

FKA 225

Data
