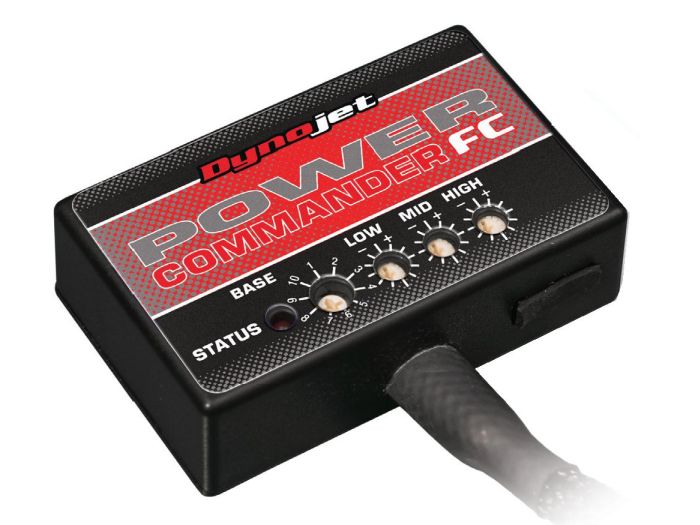

EFC19031 - Dynojet Power Commander Fuel Controller for 2015 - 2022 Polaris AXYS 600

Power Commander FC

A new additional control unit equipped with model-specific wiring, which stores up to 10 maps and allows them to be selected or modified without the use of an external computer.

Through the Dynojet injector control system, a PCFC can change the standard calibration of the fuel map from -100% to +250%. Through the PC and the downloadable software, you can insert into the PCFC unit up to 10 maps already developed by Dynojet or Faster96, or modified or created by the user, which can then be further adjusted at will. The user can select the map to use from the 10 stored and/or further adjust the carburetion at high, medium and low speeds – all directly by acting on the control unit and without the need for a computer! Normally, variations of +/-10% can be made from the control unit, while variations of different flow rates can be made using the software.

|||UNTRANSLATED_CONTENT_START|||Caratteristiche:|||UNTRANSLATED_CONTENT_END|||

• Identical connectors to the standard ones and high quality wiring
• Small, lightweight and easy to place and install (mm. 70 x 45 x 20 )
• Pre-programmed with specific mappings (if the required configuration is reported together with the order)
• It is not necessary to use a computer to make changes or change mapping
• 100% compatibility with Power Commander V maps
• Software with Power Commander V map import function
• Programming software for defining detailed mappings using computers
• Basic or Advanced petrol map mode per cylinder
• Integrated lambda probe management - on some models
• TPS Calibration Function
• Resume Pump Function
• Self-diagnosis function (displays any operating or setting errors on the software)

The Dynojet PCFC control unit in applications on vehicles equipped with a control unit integrated into the throttle body, is also the only one to have a throttle angle reading system for accurate tuning based on the different engine rpm range and different throttle openings (normally not possible), unlike all the other additional control units currently on the market that act solely on the basis of engine rpm.

Some of the Dynojet PCFC control units (including those for CBR500R, CBR250R, R6 '08-'14, XJ6) allow the control and modulation of the original lambda probe signal (up to two probes simultaneously and separately), thus exploiting it for the real-time auto-correction function for the closed loop area.

PCFC units are not expandable, therefore it is not possible to add accessories such as Electronic Gearbox, Ignition Module, SFM, LCD or functions such as Speed/Drive On acquisition, box limiter or launch control

Other information:

• THERE ARE NO READY TO USE MAPS FOR SNOWMOBILES
• specify desired mapping

Compatible Motorcycles:

• POLARIS AXYS 600 (15-22)
• POLARIS AXYS 800 (15-23)
• POLARIS Axys 850 (15-22)
