E6-54 - Ignition module Dynojet Power Commander III USB HONDA CBF 600 N (08-08)

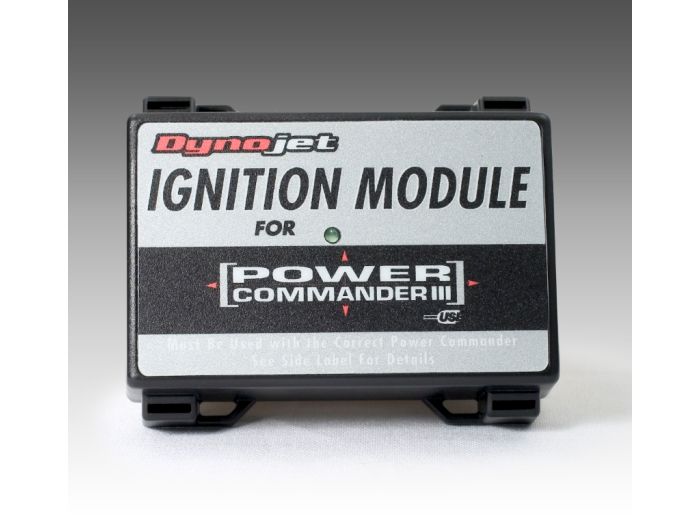

Power Commander III USB - Ignition Module

The Dynojet Ignition Module is an additional accessory for selected Power Commander 3 USB models. Allows you to vary the engine start advance of your bike.

The Dynojet Ignition Module is connected to the Power Commander 3 USB via the expansion port and communicates via CAN interface. As in the case of Power Commander, the Dynojet Ignition Module uses original connectors to connect in line with the original ignition system so no cutting or modification is necessary.

The Dynojet Ignition Module uses "Direct Coil Control" technology that allows a wide variation in degrees of the ignition advance. In the Power Commander Control Center Software the user has the possibility to advance or delay the advance curve up to 10 degrees depending on the engine revolutions and throttle position. The Ignition Module technology also allows you to vary the advance individually for each cylinder.

The Ignition Module is supplied standard with no advance variations set in the map. Given the differences between the motorcycle settings of the various countries, the gasoline used and the engine modifications, it is considered safer to leave the advance unchanged for safety reasons. For Italy, it is possible to request from Fast By Ferracci Europe s.r.l. the modified ignition map by providing the serial number of the Power Commander and the Ignition Module. For the best specific ignition map for your bike, Dynojet and Fast By Ferracci recommend taking your bike to the nearest Authorized Tuning Center. These centers have the test bench equipment necessary to optimize the performance of the Ignition Module.

On motorcycles with 8-injector injection systems that could not previously benefit from the electronic transmission, the Ignition Module now allows this function. You can now connect the Dynojet Electronic Gearbox to the Ignition Module expansion port.

REVXTEND for the limiter

This function can be enabled on the following models:

• Harley Davidson - all styles
• 2008 Honda CBF 600
• Honda CBR 600 F 01-06
• Honda CBR 600 F sport 01-02
• Honda CBR 600 RR 03-08
• Honda Hornet 900 02-05
• Honda CBR 929RR 00-01
• Honda CBR 954RR 02-03
• Honda CB 1000R 08-09
• Honda VTX 1800 02-08
• ATV Kawasaki KFX 450 08
• Kawasaki ER-6 06-08
• Kawasaki Versys 07-08
• Kawasaki Z-750 04-08
• Kawasaki Z-1000 03-08
• Kawasaki ZX6RR 03
• Kawasaki ZX6R 03-04
• Kawasaki ZX10R 04-07
• Kawasaki ZX12R 00-05
• Kawasaki ZX14R 06-08
• Kawasaki GTR1400 08
• ATV Suzuki LTR 450
• Suzuki GSR600 06-08
• Suzuki SV 650 03-08
• Suzuki GSXR 600 01-05
• Suzuki GSXR 750 00-05
• Suzuki GSXR 1000 01-04
• Suzuki SV 1000 03-07
• Suzuki GSXR 1300R 02-07
• Yamaha R6 06-08
• Yamaha YZF R1 02-08
• Yamaha FZ1 06-08
• Yamaha T-Max 2004-2009
• Yamaha XV 1300 07-08
• Yamaha WR250 X/R 08
• ATV Yamaha Raptor 06-09
• ATV Yamaha Rhino 700 08-09
• Yamaha Nytro 08 snowmobile
• Yamaha Apex 06-08 Snowmobile
• Yamaha Stratoliner /Roadliner 06-08
• ATV Yamaha Warrior 02-08
• ATV Polaris Ranger RZR 08

To activate the function simply fill in and sign the downloadable form from the link below and send it to our fax 051-726879.

Forms for RevXtend activation

ACTIVATION IS FREE !!!

Specifications:

• use only with corresponding Power Commander

Compatible Motorcycles:

• HONDA CBF 600 N (08-08)
• HONDA CBF 600 N - ABS (08-08)
• HONDA CBF 600 S (08-08)
• HONDA CBF 600 S - ABS (08-08)
• HONDA Hornet 600 (07-10)
