E21-020 - ECU+Ignition Dynojet Power Commander V TRIUMPH Thruxton 1200 (16-19)

Control unit - Iniez.+ Power

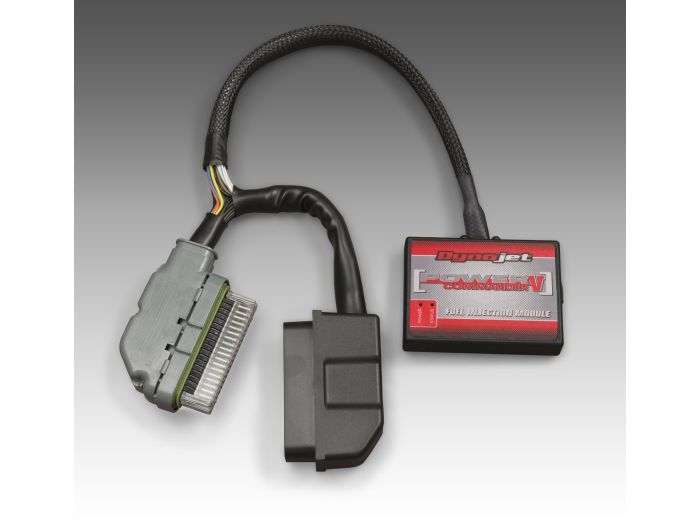

Power Commander V with integrated ignition control
For some motorcycle models with one or two cylinders, Power Commander V units are available which enclose the fuel injection adjustment and ignition timing control in a single element.

Features:

• Includes all the functions of a Power Commander V for fuel injection management
• Allows adjustment of the ignition timing with variations of +/- 20 degrees with respect to the original timing.
• Allows differentiated ignition adjustment for each cylinder
• It allows the differentiated ignition adjustment for each single Gear
• Allows shifting of the engine rev limiter (on some models)
• It allows the regulation of the ignition on the basis of temperature input or suction pressure
• Launch Limiter function included for stationary start included
• Ignition delay adjustment for supercharging or NOS use
• Box lane limiter function

Another specific function of this type of Power Commander V consists in the possibility of simultaneously activating 2 of the following functions: Map Switch, Electronic Gearbox, Lane Restrictor Box Function, Launch Control Function.

Furthermore the units for Harley Davidson models have these additional features:

• RevXtend included, for the variation of the limiter level.
• "Warm Up" fuel adjustment function that allows you to adjust fuel and advance based on the operating temperature read by the PCV directly from the original engine management system.
• Software capable of reading and displaying J1850 data directly from the bike's serial control unit (ie operating temperature, fuel signal amplitude, ignition advance, anti-detonation)

Compatible motorcycles

• TRIUMPH Thruxton 1200 (16-19)
• TRIUMPH Thruxton 1200 R (16-19)
