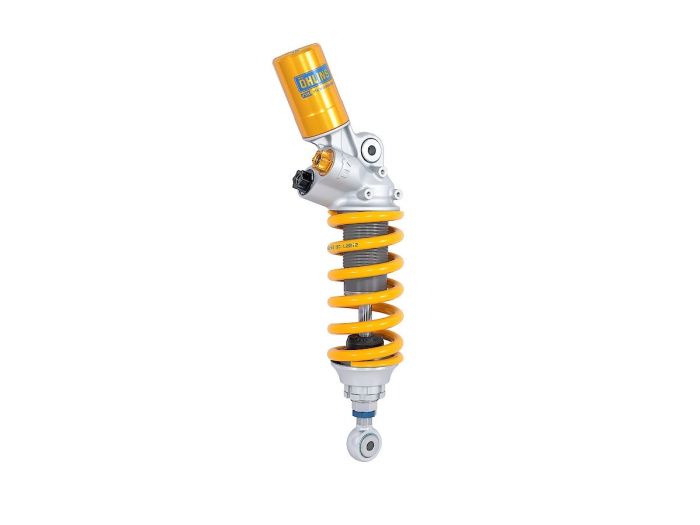

DU569 - Shock Absorber Ohlins TTX GP T36PR1C1LB 80 N/mm Ducati Panigale V2 (20-)

TTX GP Shock Absorber DU 569

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

Part number

Type Code

	T Twin tube
	36 Piston diameter: 36 mm
	P Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
	R1 Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.
	C1 Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.
	L Adjustable length.

Technical data

Fits for vehicles

• Ducati Panigale V2 (2020 – )
