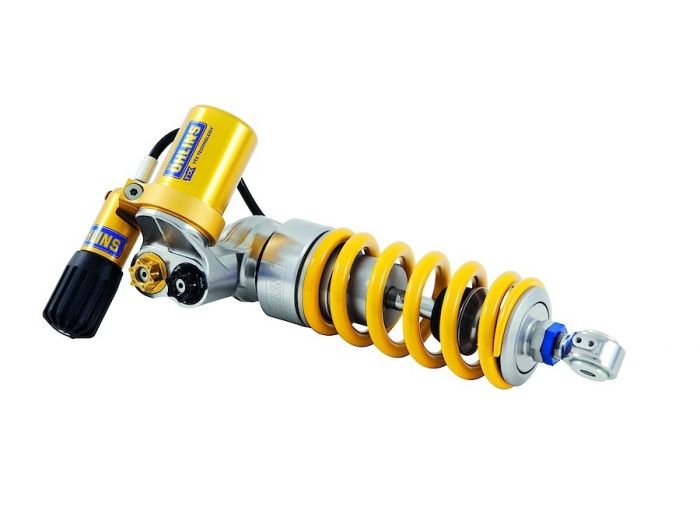

TTX GP Shock Absorber DU 468

Based on your bike’s performance, its price and available mounting space we have designed a shock that we think suits it, both when it comes to price and performance.

We start by choosing a type which we tailor-make for your specific bike. The basic setup, the design of the shim stacks and the calibration of the adjusters, is tested both on road and track. They are the results of true tests with your bike and no guesswork!

Öhlins manufactures more than 300 different shock absorber models, each model is tailor-made for one specific bike. The concept of all Öhlins products is not a secret, it is precision. Precision provides superior control of the damping force and the key to our success.

• Ducati Panigale V4 (2018 – 2019)

• Ducati Panigale V4 R (2019 – )

  • For V4R: adjust shock absorber length to 312 mm by turning the end eye 2 full turns out. See Öhlins Owner’s Manual also.

• Ducati Panigale V4 S (2018 – 2019)

• Ducati Panigale V4 S Corse (2019)

  • *For Racing use only, may cause fault code in display*

• Ducati Panigale V4 Speciale (2018 – 2019)

T

Twin tube

36

Piston diameter: 36 mm

P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1

Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1

Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

L

Adjustable length.
