DMX0306 - Öhlins TTX Flow DV MX & Enduro Shock Absorber Sherco SE / SEF Factory
Special Price
$1,723.13
Regular Price
$1,852.82
SKU
DMX0306
In stock
shipping in 5/15 working days
Estimate Shipping Cost
Öhlins TTX Flow DV MX & Enduro Shock Absorber Sherco 125 SE Factory (19-22) | Sherco 250 SE Factory (19-22) | Sherco 250 SE-R (22) | Sherco 250 SEF Factory (19-22) | Sherco 300 SE Factory (19-22) | Sherco 300 SE-R (22) | Sherco 300 SEF Factory (19-22) | Sherco 300 SEF-R (22) | Sherco 450 SEF Factory (19-22) | Sherco 500 SEF Factory (19-22)
Original Product

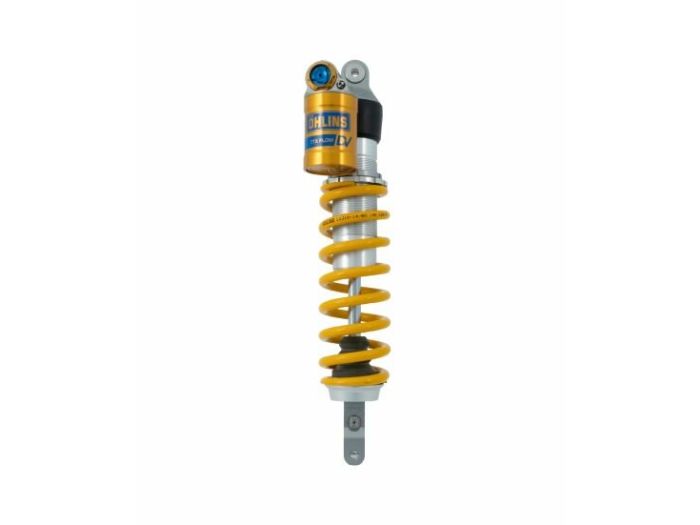

Images are to be considered for demonstration purposes only and may not represent the actual product.
Öhlins TTX Flow DV MX & Enduro Shock Absorber DMX 0306
We are happy to introduce a highly effective high-speed adjuster with unique design at the TTX Flow DV, so far unseen on the market. Our high-speed adjuster is efficiently targeting position, stroking velocity, g-force hold up and bottoming control. Additionally, we have progressed further on comfort and traction through the introduction of a new rebound needle and shaft jet design, which give significant improvements. Furthermore, a new compression valve interface allowing for a more comfortable character on our products.
Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.
Adjustment Possibilities
- Low speed rebound damping
- Low speed compression damping
- High speed compression damping
- Spring preload
Purchased Parts Package
- Shock absorber TTX Flow DV
- Spring (select for riders weight, see mounting instruction)
- Owners manual and mounting instruction
Additional Options
Mechanical spring preload adjusters are available as an additional option to change the sag quick and easy using an 8mm Allen key. Without the preload adjuster the spring preload can be adjusted with c spanners (not in the purchased parts package).
Fits the following vehicles
Sherco 125 SE Factory, 2019 – 2022
Sherco 250 SE Factory, 2019 – 2022
Sherco 250 SE-R, 2022
Sherco 250 SEF Factory, 2019 – 2022
Sherco 300 SE Factory, 2019 – 2022
Sherco 300 SE-R, 2022
Sherco 300 SEF Factory, 2019 – 2022
Sherco 300 SEF-R, 2022
Sherco 450 SEF Factory, 2019 – 2022
Sherco 500 SEF Factory, 2019 – 2022
Part number
DMX 0306/06310-xx/06451-xx
Type Code
T46PR1C2W
T
Twin tube
46
Piston diameter: 46 mm
P
Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.
W
Shock absorber delivered without spring, needs to be ordered separately.
R1 Flow
Rebound adjuster TTX Flow
Data
| Length: | 480 mm |
|---|---|
| Stroke: | 137 mm |
| Position: | rear |
| Spring series: | 06310-XX / 06451-XX |
| Recommended oil: | 01304-XX |
| Packaging unit: | pieces |
Recommendations
Mechanical Preload Adjuster Type 1 MX & Enduro
C-Spanner STX46, TTX Flow, TTX Flow DV
| Bike - Brand | Sherco |
|---|---|
| Bike - Type | Off-Road |
| Bike - Model | SE Factory 125, SE Factory 250, SE Factory 300, SE-R 250, SE-R 300, SEF Factory 250, SEF Factory 300, SEF Factory 450, SEF Factory 500, SEF-R 300 |
| Bike - Year | 2019, 2020, 2021, 2022 |
