DMX0303 - Öhlins TTX Flow DV MX & Enduro Shock Absorber Gas Gas/Husqvarna

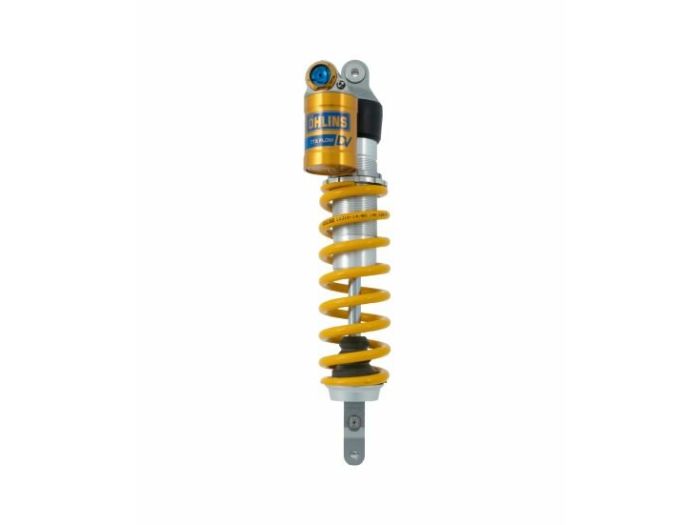

Öhlins TTX Flow DV MX & Enduro Shock Absorber DMX 0303

We are happy to introduce a highly effective high-speed adjuster with unique design at the TTX Flow DV, so far unseen on the market. Our high-speed adjuster is efficiently targeting position, stroking velocity, g-force hold up and bottoming control. Additionally, we have progressed further on comfort and traction through the introduction of a new rebound needle and shaft jet design, which give significant improvements. Furthermore, a new compression valve interface allowing for a more comfortable character on our products.

Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.

Adjustment Possibilities

• Low speed rebound damping
• Low speed compression damping
• High speed compression damping
• Spring preload

Purchased Parts Package

• Shock absorber TTX Flow DV
• Spring (select for riders weight, see mounting instruction)
• Owners manual and mounting instruction

Additional Options

Mechanical spring preload adjusters are available as an additional option to change the sag quick and easy using an 8mm Allen key. Without the preload adjuster the spring preload can be adjusted with c spanners (not in the purchased parts package).

Fits the following vehicles

• GASGAS EC 250, 2021 – 2022

• GASGAS EC 250F, 2021 – 2022

• GASGAS EC 350F, 2021 – 2022

• Husqvarna FE 250, 2020 – 2022

• Husqvarna FE 350, 2020 – 2022

• Husqvarna TE 150, 2020 – 2022

• Husqvarna TE 250, 2020 – 2022

Part number

DMX 0303/06310-xx

Type Code

T46PR1C2W

T

Twin tube

46

Piston diameter: 46 mm

P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

W

Shock absorber delivered without spring, needs to be ordered separately.

R1 Flow

Rebound adjuster TTX Flow

Data

Recommendations

•

  Mechanical Preload Adjuster Type 1 MX & Enduro

•

  C-Spanner STX46, TTX Flow, TTX Flow DV
