DMX0101 - Öhlins STX 46 MX & Enduro Shock Absorber Gas Gas/Husqvarna/KTM

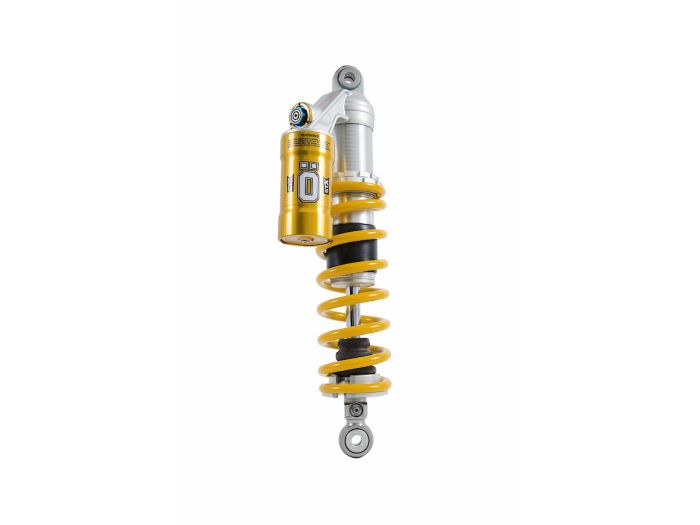

Öhlins STX 46 MX & Enduro Shock Absorber DMX 0101

Öhlins MX & Enduro shock absorbers are delivered without spring. The correct spring for the riders weight must be ordered separate. Information regarding the suitable spring series as well as recommendations for the spring rate can be found in the product details and in the mounting instructions.

Adjustment Possibilities

• Low speed rebound damping
• Low speed compression damping
• High speed compression damping
• Spring preload

Purchased Parts Package

• Shock absorber STX46
• Spring (select for riders weight, see mounting instruction)
• Owners manual and mounting instruction

Fits the following vehicles

• GASGAS MC 85, 2021 – 2022

• Husqvarna TC 85, 2018 – 2022

• KTM 85 SX, 2018 – 2022

Part number

DMX 0101/00698-xx

Type Code

S46PR1C2Q1W

S

Single tube

46

Piston diameter: 46 mm

P

Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Q1

Progressive damping shock absorber with two pistons.

W

Shock absorber delivered without spring, needs to be ordered separately.

R1

Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C2

Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.

Data

Recommendations

•

  C-Spanner STX46, TTX Flow, TTX Flow DV
