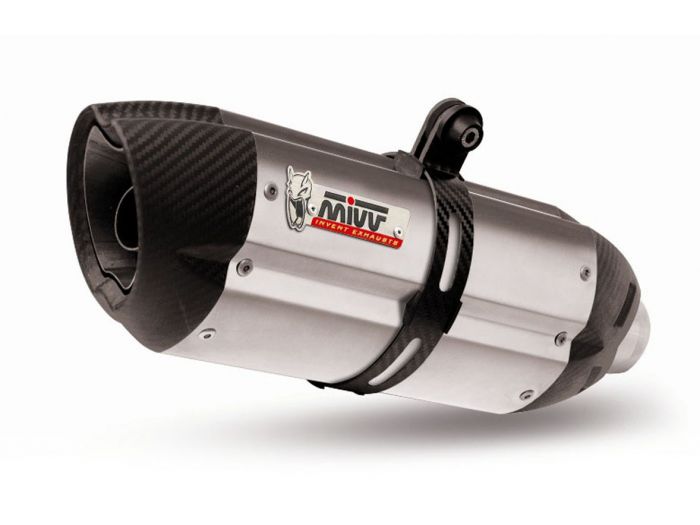

D.034.L7 - Exhaust Muffler Mivv Suono Stainless Steel DUCATI MULTISTRADA 1200

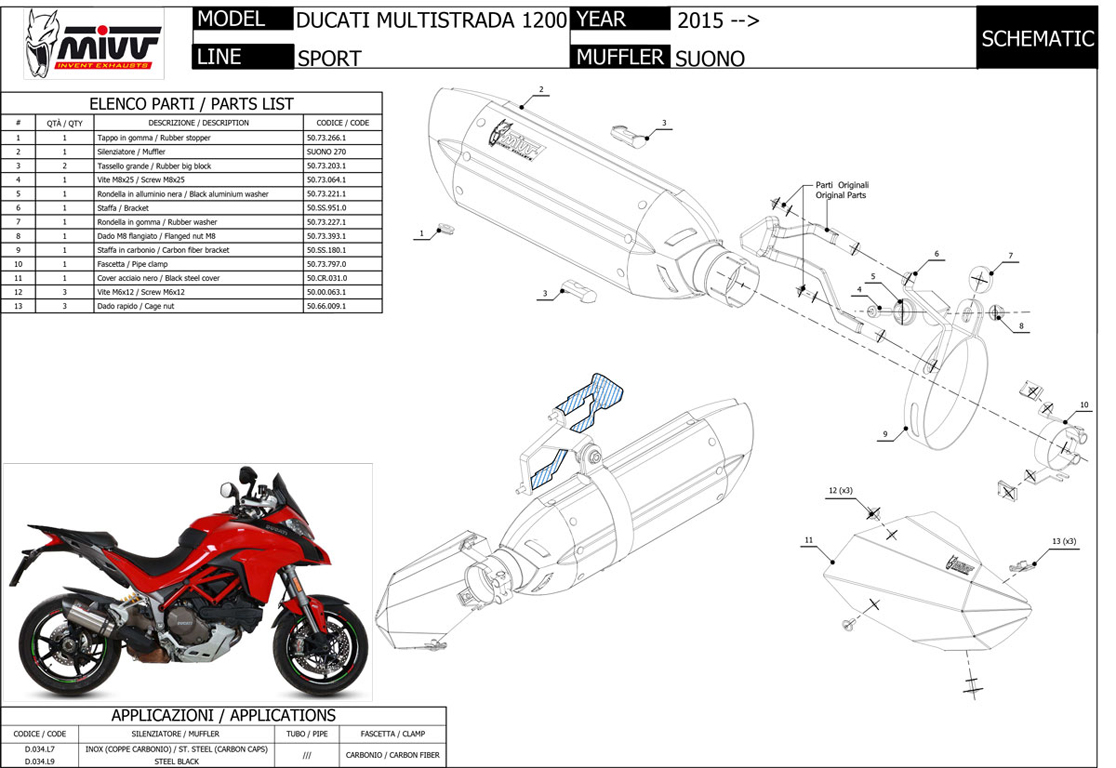

Installation Diagram

SUONO Steel
This is the model intended for those who wish to enhance the look of their motorbikes with an innovative design model, but at a limited cost.

Compared with other Suono versions, this product is fully made of high temperature resistant austenitic AISI 304 stainless steel. The internal components are also made of stainless steel.

Technical and mechanical features

• To keep SUONO’s weight down, we chose the best materials available.
• Titanium 1 slow degree, with a wall thickness of just 0.6 mm, resulting in an incidence of just 15% on the total weight.
• 3K 200 gr /mq² twill carbon impregnated with special high-temperature-resistant resins.
• Sound-absorbent can constructed with a blend of high-temperature-resistant CE 14-micron texturized fabrics specially studied for lowering noise – especially at high frequencies.
• Removable pipe (dB - Killer) studied to guarantee perfect compliance with the current noise regulations and at the same time capable of exalting SUONO’s thunderous sound.
• AISI 304 stainless steel rivets (4,8 x10) with a shear resistance value of 7.000 Nm and a tensile stress resistance of 4.900 Nm, in order to guarantee the structural stability of the silencer.
• CNC-machined AISI 304 stainless steel bushing to ensure perfect couplings with the connecting pipes (only for standard version).
• Internal components of titanium grade 1, thickness 0.6 and 0.8 mm for the full titanium version
• 3K 200 gr /mq² twill carbon fiber fastening strap, to keep high resistance to mechanical stresses.
